GUARNICION CON ARO EXPANSOR
ESTILO GO es una guarnición con aro expansor empleada en sistemas hidráulicos.
Esta inyectada en poliuretano con una posterior impregnación de disulfuro de molibdeno e incorpora entre sus labios un o-ring que le brinda la memoria elástica para su sellado

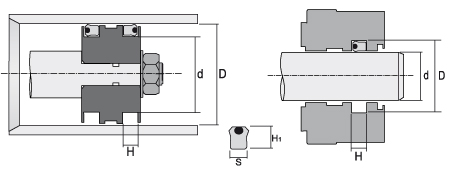

Grafico
TABLA DE PRODUCTO
CODIGO | d | D | H | H1 | S |
---|
GOP-1250250250 | 6,35 | 12,7 | 7,00 | 6,35 | 3,17 |
GOP-1870250250 | 6,35 | 15,85 | 7,00 | 6,35 | 4,75 |
GOP-1250312250 | 7,94 | 14,29 | 7,00 | 6,35 | 3,17 |
GOP-1870312312 | 7,94 | 17,46 | 8,75 | 7,93 | 4,75 |
GOP-1250375125 | 9,52 | 15,88 | 3,5 | 3,17 | 3,17 |
GOP-1250375250 | 9,52 | 15,88 | 7,0 | 6,35 | 3,17 |
GOP-1250375125 | 9,52 | 15,88 | 3,5 | 3,17 | 3,17 |
GOP-1250437125 | 11,11 | 17,46 | 3,50 | 3,17 | 3,17 |
GOP-1250250250 | 6,35 | 12,70 | 7,00 | 6,35 | 3,17 |
GOP-1870250250 | 6,35 | 15,85 | 7,00 | 6,35 | 4,75 |
GOP-1250312250 | 7,94 | 14,29 | 7,00 | 6,35 | 3,17 |
GOP-1870312312 | 7,94 | 17,46 | 8,75 | 7,93 | 4,75 |
GOP-1250375125 | 9,52 | 15,88 | 3,50 | 3,17 | 3,17 |
GOP-1250375250 | 9,52 | 15,88 | 7,00 | 6,35 | 3,17 |
GOP-1250437125 | 11,11 | 17,46 | 3,50 | 3,17 | 3,17 |
GOP-1250437250 | 11,11 | 17,46 | 7,00 | 6,35 | 3,17 |
GOP-1870437312 | 11,11 | 20,64 | 8,75 | 7,93 | 4,75 |
GOP-1250500125 | 12,70 | 19,05 | 3,50 | 3,17 | 3,17 |
GOP-1250500250 | 12,70 | 19,05 | 7,00 | 6,35 | 3,17 |
GOP-1870500312 | 12,70 | 22,22 | 8,75 | 7,93 | 4,75 |
GOP-2500500375 | 12,70 | 25,40 | 10,50 | 9,52 | 6,35 |
GOP-1250562250 | 14,29 | 20,64 | 7,00 | 6,35 | 3,17 |
GOP-1870562187 | 14,29 | 23,81 | 5,25 | 4,75 | 4,75 |
GOP-1870562312 | 14,29 | 23,81 | 8,75 | 7,93 | 4,75 |
GOP-2500562375 | 14,29 | 26,99 | 10,50 | 9,52 | 6,35 |
GOP-1250625125 | 15,88 | 22,22 | 3,50 | 3,17 | 3,17 |
GOP-1250625250 | 15,88 | 22,22 | 7,00 | 6,35 | 3,17 |
GOP-1870625250 | 15,88 | 25,40 | 7,00 | 6,35 | 4,75 |
GOP-1870625312 | 15,88 | 25,40 | 8,75 | 7,93 | 4,75 |
GOP-2500625375 | 15,88 | 28,58 | 10,50 | 9,52 | 6,35 |
GOP-1250687250 | 17,40 | 23,80 | 7,00 | 6,35 | 3,17 |
GOP-1870687187 | 17,46 | 26,99 | 5,25 | 4,75 | 4,75 |
GOP-1870687312 | 17,46 | 26,99 | 8,75 | 7,93 | 4,75 |
GOP-2500687250 | 17,46 | 30,16 | 7,00 | 6,35 | 6,35 |
GOP-2500687375 | 17,46 | 30,16 | 10,50 | 9,52 | 6,35 |
GOP-1250750187 | 19,05 | 25,40 | 5,25 | 4,75 | 3,17 |
GOP-1250750250 | 19,05 | 25,40 | 7,00 | 6,35 | 3,17 |
GOP-1870750187 | 19,05 | 28,58 | 5,25 | 4,75 | 4,75 |
GOP-1870750312 | 19,05 | 28,58 | 8,75 | 7,93 | 4,75 |
GOP-2500750375 | 19,05 | 31,75 | 10,50 | 9,52 | 6,35 |
GOP-3120750500 | 19,05 | 34,93 | 14,00 | 12,70 | 7,93 |
GOP-3750750375 | 19,05 | 38,10 | 10,50 | 9,52 | 9,52 |
GOP-1250812250 | 20,60 | 26,97 | 7,00 | 6,35 | 3,17 |
GOP-1870812187 | 20,64 | 30,16 | 5,25 | 4,75 | 4,75 |
GOP-1870812312 | 20,64 | 30,16 | 8,75 | 7,93 | 4,75 |
GOP-2500812250 | 20,64 | 33,34 | 7,00 | 6,35 | 6,35 |
GOP-2500812375 | 20,64 | 33,34 | 10,50 | 9,52 | 6,35 |
GOP-1250875250 | 22,22 | 28,58 | 7,00 | 6,35 | 3,17 |
GOP-1870875187 | 22,22 | 31,75 | 5,25 | 4,75 | 4,75 |
GOP-1870875312 | 22,22 | 31,75 | 8,75 | 7,93 | 4,75 |
GOP-2500875375 | 22,22 | 34,92 | 10,50 | 9,52 | 6,35 |
GOP-3750875375 | 22,22 | 41,28 | 10,50 | 9,52 | 9,52 |
GOP-1250937250 | 23,81 | 30,16 | 7,00 | 6,35 | 3,17 |
GOP-1870937187 | 23,81 | 33,33 | 5,25 | 4,75 | 4,75 |
GOP-1870937312 | 23,81 | 33,33 | 8,75 | 7,93 | 4,75 |
GOP-2500937250 | 23,81 | 36,51 | 7,00 | 6,35 | 6,35 |
GOP-12501000125 | 25,40 | 31,75 | 3,50 | 3,17 | 3,17 |
GOP-12501000250 | 25,40 | 31,75 | 7,00 | 6,35 | 3,17 |
GOP-18701000187 | 25,40 | 34,92 | 5,25 | 4,75 | 4,75 |
GOP-18701000312 | 25,40 | 34,92 | 8,75 | 7,93 | 4,75 |
GOP-25001000250 | 25,40 | 38,10 | 7,00 | 6,35 | 6,35 |
GOP-25001000375 | 25,40 | 38,10 | 10,50 | 9,52 | 6,35 |
GOP-31201000312 | 25,40 | 41,28 | 8,75 | 7,93 | 7,93 |
GOP-31201000500 | 25,40 | 41,28 | 14,00 | 12,70 | 7,93 |
GOP-37501000375 | 25,40 | 44,45 | 17,50 | 15,87 | 9,52 |
GOP-12501062125 | 26,97 | 33,30 | 3,50 | 3,17 | 3,17 |
GOP-12501062250 | 26,97 | 33,30 | 7,00 | 6,35 | 3,17 |
GOP-18701062187 | 26,97 | 36,50 | 5,25 | 4,75 | 4,75 |
GOP-18701062312 | 26,97 | 36,50 | 8,75 | 7,93 | 4,75 |
GOP-25001062250 | 26,98 | 39,68 | 7,00 | 6,35 | 6,35 |
GOP-31201062312 | 26,98 | 42,86 | 8,75 | 7,93 | 7,93 |
GOP-12501100180 | 27,94 | 34,28 | 5,03 | 4,57 | 3,17 |
GOP-31201125500 | 28,57 | 44,45 | 14,00 | 12,70 | 7,93 |
GOP-12501125250 | 28,58 | 34,92 | 7,00 | 6,35 | 3,17 |
GOP-18701125187 | 28,58 | 38,10 | 5,25 | 4,75 | 4,75 |
GOP-18701125312 | 28,58 | 38,10 | 8,75 | 7,93 | 4,75 |
GOP-25001125375 | 28,58 | 41,28 | 10,50 | 9,52 | 6,35 |
GOP-37501125375 | 28,58 | 47,63 | 10,50 | 9,52 | 9,52 |
GOP-12501187125 | 30,16 | 36,51 | 3,50 | 3,17 | 3,17 |
GOP-12501187250 | 30,16 | 36,51 | 7,00 | 6,35 | 3,17 |
GOP-18701187187 | 30,16 | 39,68 | 5,25 | 4,75 | 4,75 |
GOP-18701187312 | 30,16 | 39,68 | 8,75 | 7,93 | 4,75 |
GOP-25001187250 | 30,16 | 42,86 | 7,00 | 6,35 | 6,35 |
GOP-25001187375 | 30,16 | 42,86 | 10,50 | 9,52 | 6,35 |
GOP-31201187312 | 30,16 | 46,03 | 8,75 | 7,93 | 7,93 |
GOP-12501250125 | 31,75 | 38,10 | 3,50 | 3,17 | 3,17 |
GOP-12501250250 | 31,75 | 38,10 | 7,00 | 6,35 | 3,17 |
GOP-18701250187 | 31,75 | 41,28 | 5,25 | 4,75 | 4,75 |
GOP-18701250375 | 31,75 | 41,28 | 10,50 | 9,52 | 4,75 |
GOP-18701250312 | 31,75 | 41,28 | 8,75 | 7,93 | 4,75 |
GOP-25001250250 | 31,75 | 44,45 | 7,00 | 6,35 | 6,35 |
GOP-25001250375 | 31,75 | 44,45 | 10,50 | 9,52 | 6,35 |
GOP-31201250312 | 31,75 | 47,62 | 8,75 | 7,93 | 7,93 |
GOP-31201250500 | 31,75 | 47,62 | 14,00 | 12,70 | 7,93 |
GOP-37501250375 | 31,75 | 50,80 | 10,50 | 9,52 | 9,52 |
GOP-37501250625 | 31,75 | 50,80 | 17,50 | 15,87 | 9,52 |
GOP-37501250562 | 31,75 | 50,80 | 15,75 | 14,29 | 9,52 |
GOP-18701312187 | 33,30 | 42,86 | 5,25 | 4,75 | 4,75 |
GOP-18701312312 | 33,30 | 42,86 | 8,75 | 7,93 | 4,75 |
GOP-18701312375 | 33,30 | 42,86 | 10,50 | 9,52 | 4,75 |
GOP-31201312312 | 33,33 | 49,19 | 8,75 | 7,93 | 7,93 |
GOP-37501312375 | 33,33 | 52,38 | 10,50 | 9,52 | 9,52 |
GOP-18701375187 | 34,90 | 44,40 | 5,25 | 4,75 | 4,75 |
GOP-18701375312 | 34,90 | 44,40 | 8,75 | 7,92 | 4,75 |
GOP-18701375375 | 34,90 | 44,40 | 10,50 | 9,52 | 4,75 |
GOP-12501375125 | 34,92 | 41,28 | 3,50 | 3,17 | 3,17 |
GOP-12501375250 | 34,92 | 41,28 | 7,00 | 6,35 | 3,17 |
GOP-25001375375 | 34,92 | 47,62 | 10,50 | 9,52 | 6,35 |
GOP-31201375500 | 34,92 | 50,80 | 14,00 | 12,70 | 7,93 |
GOP-18701437187 | 36,50 | 46,00 | 5,25 | 4,75 | 4,75 |
GOP-18701437312 | 36,50 | 46,00 | 8,75 | 7,93 | 4,75 |
GOP-18701437375 | 36,50 | 46,00 | 10,50 | 9,52 | 4,75 |
GOP-12501437250 | 36,51 | 42,86 | 7,00 | 6,35 | 3,17 |
GOP-31201437500 | 36,51 | 52,39 | 14,00 | 12,70 | 7,93 |
GOP-37501437375 | 36,51 | 55,56 | 10,50 | 9,52 | 9,52 |
GOP-12501500125 | 38,10 | 44,45 | 3,50 | 3,17 | 3,17 |
GOP-12501500250 | 38,10 | 44,45 | 7,00 | 6,35 | 3,17 |
GOP-18701500187 | 38,10 | 47,62 | 5,25 | 4,75 | 4,75 |
GOP-18701500250 | 38,10 | 47,62 | 7,00 | 6,35 | 4,75 |
GOP-18701500312 | 38,10 | 47,62 | 8,75 | 7,93 | 4,75 |
GOP-18701500375 | 38,10 | 47,62 | 10,50 | 9,52 | 4,75 |
GOP-25001500250 | 38,10 | 50,80 | 7,00 | 6,35 | 6,35 |
GOP-25001500375 | 38,10 | 50,80 | 10,50 | 9,52 | 6,35 |
GOP-31201500312 | 38,10 | 53,98 | 8,75 | 7,93 | 7,93 |
GOP-31201500500 | 38,10 | 53,98 | 14,00 | 12,70 | 7,93 |
GOP-37501500375 | 38,10 | 57,15 | 10,50 | 9,52 | 9,52 |
GOP-37501500625 | 38,10 | 57,15 | 17,50 | 15,87 | 9,52 |
GOP-50001500750 | 38,10 | 63,50 | 21,00 | 19,05 | 12,70 |
GOP-37501562375 | 39,69 | 58,74 | 10,50 | 9,52 | 9,52 |
GOP-18701575375 | 40,01 | 49,52 | 10,50 | 9,52 | 4,75 |
GOP-12501625125 | 41,28 | 47,62 | 3,50 | 3,17 | 3,17 |
GOP-12501625250 | 41,28 | 47,62 | 7,00 | 6,35 | 3,17 |
GOP-18701625187 | 41,28 | 50,80 | 5,25 | 4,75 | 4,75 |
GOP-18701625375 | 41,28 | 50,80 | 10,50 | 9,52 | 4,75 |
GOP-25001625375 | 41,28 | 53,98 | 10,50 | 9,52 | 6,35 |
GOP-31201625312 | 41,28 | 57,15 | 8,75 | 7,93 | 7,93 |
GOP-31201625500 | 41,28 | 57,15 | 14,00 | 12,70 | 7,93 |
GOP-37501625625 | 41,28 | 60,32 | 17,50 | 15,87 | 9,52 |
GOP-31201687500 | 42,80 | 58,70 | 14,00 | 12,70 | 7,93 |
GOP-18701687187 | 42,86 | 52,38 | 5,25 | 4,75 | 4,75 |
GOP-12501750125 | 44,40 | 50,80 | 3,50 | 3,17 | 3,17 |
GOP-12501750250 | 44,40 | 50,80 | 7,00 | 6,35 | 3,17 |
GOP-18701750187 | 44,45 | 53,98 | 5,25 | 4,75 | 4,75 |
GOP-18701750375 | 44,45 | 53,98 | 10,50 | 9,52 | 4,75 |
GOP-25001750250 | 44,45 | 57,15 | 7,00 | 6,35 | 6,35 |
GOP-25001750375 | 44,45 | 57,15 | 10,50 | 9,52 | 6,35 |
GOP-31201750312 | 44,45 | 60,32 | 8,75 | 7,93 | 7,93 |
GOP-31201750500 | 44,45 | 60,32 | 14,00 | 12,70 | 7,93 |
GOP-37501750625 | 44,45 | 63,50 | 17,50 | 15,87 | 9,52 |
GOP-18701812187 | 46,00 | 55,50 | 5,25 | 4,75 | 4,75 |
GOP-18701812375 | 46,00 | 55,50 | 10,50 | 9,52 | 4,75 |
GOP-18701875187 | 47,62 | 57,15 | 5,25 | 4,75 | 4,75 |
GOP-18701875375 | 47,62 | 57,15 | 10,50 | 9,52 | 4,75 |
GOP-25001875250 | 47,62 | 60,32 | 7,00 | 6,35 | 6,35 |
GOP-25001875375 | 47,62 | 60,32 | 10,50 | 9,52 | 6,35 |
GOP-31201875500 | 47,62 | 63,50 | 14,00 | 12,70 | 7,93 |
GOP-18701937187 | 49,20 | 58,70 | 5,25 | 4,75 | 4,75 |
GOP-18701937375 | 49,20 | 58,70 | 10,50 | 9,52 | 4,75 |
GOP-25001937375 | 49,21 | 61,91 | 10,50 | 9,52 | 6,35 |
GOP-12502000250 | 50,80 | 57,15 | 7,00 | 6,35 | 3,17 |
GOP-18702000187 | 50,80 | 60,32 | 5,25 | 4,75 | 4,75 |
GOP-18702000312 | 50,80 | 60,32 | 8,75 | 7,93 | 4,75 |
GOP-18702000375 | 50,80 | 60,32 | 10,50 | 9,52 | 4,75 |
GOP-25002000250 | 50,80 | 63,50 | 7,00 | 6,35 | 6,35 |
GOP-25002000375 | 50,80 | 63,50 | 10,50 | 9,52 | 6,35 |
GOP-31202000312 | 50,80 | 66,68 | 8,75 | 7,93 | 7,93 |
GOP-31202000500 | 50,80 | 66,68 | 14,00 | 12,70 | 7,93 |
GOP-37502000625 | 50,80 | 69,85 | 17,50 | 15,87 | 9,52 |
GOP-50002000750 | 50,80 | 76,20 | 21,00 | 19,05 | 12,70 |
GOP-18702125250 | 53,98 | 63,50 | 7,00 | 6,35 | 4,75 |
GOP-18702125375 | 53,98 | 63,50 | 10,50 | 9,52 | 4,75 |
GOP-25002125375 | 53,98 | 66,68 | 10,50 | 9,52 | 6,35 |
GOP-31202125312 | 53,98 | 69,85 | 8,75 | 7,93 | 7,93 |
GOP-31202125500 | 53,98 | 69,85 | 14,00 | 12,70 | 7,93 |
GOP-18702187312 | 55,50 | 65,00 | 8,75 | 7,93 | 4,75 |
GOP-18702250375 | 57,15 | 66,68 | 10,50 | 9,52 | 4,75 |
GOP-25002250375 | 57,15 | 69,85 | 10,50 | 9,52 | 6,35 |
GOP-31202250500 | 57,15 | 73,02 | 14,00 | 12,70 | 7,93 |
GOP-37502250375 | 57,15 | 76,20 | 10,50 | 9,52 | 9,52 |
GOP-37502250625 | 57,15 | 76,20 | 17,50 | 15,87 | 9,52 |
GOP-31202312312 | 58,73 | 74,59 | 8,75 | 7,93 | 7,93 |
GOP-18702375187 | 60,32 | 69,85 | 5,25 | 4,75 | 4,75 |
GOP-18702375375 | 60,32 | 69,85 | 10,50 | 9,52 | 4,75 |
GOP-25002375375 | 60,32 | 73,02 | 10,50 | 9,52 | 6,35 |
GOP-31202375500 | 60,32 | 76,20 | 14,00 | 12,70 | 7,93 |
GOP-37502375375 | 60,32 | 79,38 | 10,50 | 9,52 | 9,52 |
GOP-37502375625 | 60,32 | 79,38 | 17,50 | 15,87 | 9,52 |
GOP-18702500375 | 63,50 | 73,02 | 10,50 | 9,52 | 4,75 |
GOP-25002500250 | 63,50 | 76,20 | 7,00 | 6,35 | 6,35 |
GOP-25002500375 | 63,50 | 76,20 | 10,50 | 9,52 | 6,35 |
GOP-31202500312 | 63,50 | 79,38 | 8,75 | 7,93 | 7,93 |
GOP-31202500500 | 63,50 | 79,38 | 14,00 | 12,70 | 7,93 |
GOP-37502500375 | 63,50 | 82,55 | 10,50 | 9,52 | 9,52 |
GOP-37502500625 | 63,50 | 82,55 | 17,50 | 15,87 | 9,52 |
GOP-50002500750 | 63,50 | 88,90 | 21,00 | 19,05 | 12,70 |
GOP-31202562312 | 65,00 | 80,95 | 8,75 | 7,93 | 7,93 |
GOP-31202625500 | 66,60 | 82,50 | 14,00 | 12,70 | 7,93 |
GOP-18702625375 | 66,68 | 76,20 | 10,50 | 9,52 | 4,75 |
GOP-25002625250 | 66,68 | 79,38 | 7,00 | 6,35 | 6,35 |
GOP-25002625375 | 66,68 | 79,38 | 10,50 | 9,52 | 6,35 |
GOP-37502625375 | 66,68 | 85,72 | 10,50 | 9,52 | 9,52 |
GOP-37502625625 | 66,68 | 85,72 | 17,50 | 15,87 | 9,52 |
GOP-31202750312 | 69,80 | 85,70 | 8,75 | 7,93 | 7,93 |
GOP-31202750500 | 69,80 | 85,70 | 14,00 | 12,70 | 7,93 |
GOP-18702750187 | 69,85 | 79,38 | 5,25 | 4,75 | 4,75 |
GOP-18702750375 | 69,85 | 79,38 | 10,50 | 9,52 | 4,75 |
GOP-25002750375 | 69,85 | 82,55 | 10,50 | 9,52 | 6,35 |
GOP-37502750375 | 69,85 | 88,90 | 10,50 | 9,52 | 9,52 |
GOP-37502750500 | 69,85 | 88,90 | 14,00 | 12,70 | 9,52 |
GOP-37502750625 | 69,85 | 88,90 | 17,50 | 15,87 | 9,52 |
GOP-18702875375 | 73,00 | 82,50 | 10,50 | 9,52 | 4,75 |
GOP-37502875375 | 73,00 | 92,10 | 10,50 | 9,52 | 9,52 |
GOP-37502875625 | 73,00 | 92,10 | 17,50 | 15,87 | 9,52 |
GOP-25002875375 | 73,02 | 85,72 | 10,50 | 9,52 | 6,35 |
GOP-31202875500 | 73,03 | 88,90 | 14,00 | 12,70 | 7,93 |
GOP-18703000375 | 76,20 | 85,72 | 10,50 | 9,52 | 4,75 |
GOP-25003000250 | 76,20 | 88,90 | 7,00 | 6,35 | 6,35 |
GOP-25003000375 | 76,20 | 88,90 | 10,50 | 9,52 | 6,35 |
GOP-31203000312 | 76,20 | 92,08 | 8,75 | 7,93 | 7,93 |
GOP-31203000500 | 76,20 | 92,08 | 14,00 | 12,70 | 7,93 |
GOP-37503000625 | 76,20 | 95,25 | 17,50 | 15,87 | 9,52 |
GOP-50003000500 | 76,20 | 101,60 | 14,00 | 12,70 | 12,70 |
GOP-50003000750 | 76,20 | 101,60 | 21,00 | 19,05 | 12,70 |
GOP-31203125312 | 79,37 | 95,21 | 8,75 | 7,93 | 7,93 |
GOP-31203125500 | 79,37 | 95,21 | 14,00 | 12,70 | 7,93 |
GOP-18703125375 | 79,38 | 88,90 | 10,50 | 9,52 | 4,75 |
GOP-25003125250 | 79,38 | 92,08 | 7,00 | 6,35 | 6,35 |
GOP-25003125375 | 79,38 | 92,08 | 10,50 | 9,52 | 6,35 |
GOP-37503125625 | 79,38 | 98,42 | 17,50 | 15,87 | 9,52 |
GOP-31203250312 | 82,50 | 98,40 | 8,75 | 7,93 | 7,93 |
GOP-31203250500 | 82,50 | 98,40 | 14,00 | 12,70 | 7,93 |
GOP-18703250375 | 82,55 | 92,08 | 10,50 | 9,52 | 4,75 |
GOP-25003250250 | 82,55 | 95,25 | 7,00 | 6,35 | 6,35 |
GOP-25003250375 | 82,55 | 95,25 | 10,50 | 9,52 | 6,35 |
GOP-37503250375 | 82,55 | 101,60 | 10,50 | 9,52 | 9,52 |
GOP-37503250625 | 82,55 | 101,60 | 17,50 | 15,87 | 9,52 |
GOP-25003375375 | 85,72 | 98,42 | 10,50 | 9,52 | 6,35 |
GOP-31203375500 | 85,72 | 101,60 | 14,00 | 12,70 | 7,93 |
GOP-37503375625 | 85,72 | 104,78 | 17,50 | 15,87 | 9,52 |
GOP-18703375375 | 85,73 | 95,25 | 10,50 | 9,52 | 4,75 |
GOP-18703500375 | 88,90 | 98,42 | 10,50 | 9,52 | 4,75 |
GOP-25003500375 | 88,90 | 101,60 | 10,50 | 9,52 | 6,35 |
GOP-31203500500 | 88,90 | 104,78 | 14,00 | 12,70 | 7,93 |
GOP-37503500375 | 88,90 | 107,95 | 10,50 | 9,52 | 9,52 |
GOP-37503500625 | 88,90 | 107,95 | 17,50 | 15,87 | 9,52 |
GOP-50003500750 | 88,90 | 114,30 | 21,00 | 19,05 | 12,70 |
GOP-18703625375 | 92,08 | 101,60 | 10,50 | 9,52 | 4,75 |
GOP-25003625375 | 92,08 | 104,78 | 10,50 | 9,52 | 6,35 |
GOP-31203625312 | 92,08 | 107,95 | 8,75 | 7,93 | 7,93 |
GOP-31203625500 | 92,08 | 107,95 | 14,00 | 12,70 | 7,93 |
GOP-37503625625 | 92,08 | 111,12 | 17,50 | 15,87 | 9,52 |
GOP-31203750500 | 95,20 | 111,10 | 14,00 | 12,70 | 7,93 |
GOP-18703750375 | 95,25 | 104,78 | 10,50 | 9,52 | 4,75 |
GOP-25003750375 | 95,25 | 107,95 | 10,50 | 9,52 | 6,35 |
GOP-37503750375 | 95,25 | 114,30 | 10,50 | 9,52 | 9,52 |
GOP-37503750625 | 95,25 | 114,30 | 17,50 | 15,87 | 9,52 |
GOP-31203875312 | 98,40 | 114,30 | 8,75 | 7,93 | 7,93 |
GOP-31203875562 | 98,40 | 114,30 | 15,75 | 14,29 | 7,93 |
GOP-18703875375 | 98,42 | 107,95 | 10,50 | 9,52 | 4,75 |
GOP-25003875375 | 98,42 | 111,12 | 10,50 | 9,52 | 6,35 |
GOP-37503875625 | 98,42 | 117,47 | 17,50 | 15,87 | 9,52 |
GOP-18704000375 | 101,60 | 111,12 | 10,50 | 9,52 | 4,75 |
GOP-25004000250 | 101,60 | 114,30 | 7,00 | 6,35 | 6,35 |
GOP-25004000562 | 101,60 | 114,30 | 15,75 | 14,29 | 6,35 |
GOP-25004000375 | 101,60 | 114,30 | 10,50 | 9,52 | 6,35 |
GOP-31204000562 | 101,60 | 117,48 | 15,75 | 14,29 | 7,93 |
GOP-37504000625 | 101,60 | 120,65 | 17,50 | 15,87 | 9,52 |
GOP-50004000750 | 101,60 | 127,00 | 21,00 | 19,05 | 12,70 |
GOP-31204125562 | 104,70 | 120,60 | 15,75 | 14,29 | 7,93 |
GOP-37504125625 | 104,78 | 123,82 | 17,50 | 15,87 | 9,52 |
GOP-50004125500 | 104,78 | 130,17 | 14,00 | 12,70 | 12,70 |
GOP-50004125750 | 104,78 | 130,17 | 21,00 | 19,05 | 12,70 |
GOP-25004250562 | 107,95 | 120,65 | 15,75 | 14,29 | 6,35 |
GOP-25004250375 | 107,95 | 120,65 | 10,50 | 9,52 | 6,35 |
GOP-31204250312 | 107,95 | 123,83 | 8,75 | 7,93 | 7,93 |
GOP-31204250562 | 107,95 | 123,83 | 15,75 | 14,29 | 7,93 |
GOP-37504250375 | 107,95 | 127,00 | 10,50 | 9,52 | 9,52 |
GOP-37504250625 | 107,95 | 127,00 | 17,50 | 15,87 | 9,52 |
GOP-50004250750 | 107,95 | 133,35 | 21,00 | 19,05 | 12,70 |
GOP-18704375375 | 111,12 | 120,65 | 10,50 | 9,52 | 4,75 |
GOP-25004375562 | 111,12 | 123,80 | 15,75 | 14,29 | 6,35 |
GOP-25004375375 | 111,12 | 123,80 | 10,50 | 9,52 | 6,35 |
GOP-31204375312 | 111,12 | 127,00 | 8,75 | 7,93 | 7,93 |
GOP-31204375562 | 111,12 | 127,00 | 15,75 | 14,29 | 7,93 |
GOP-50004375750 | 111,12 | 136,52 | 21,00 | 19,05 | 12,70 |
GOP-18704500375 | 114,30 | 123,82 | 10,50 | 9,52 | 4,75 |
GOP-25004500562 | 114,30 | 127,00 | 15,75 | 14,29 | 6,35 |
GOP-25004500375 | 114,30 | 127,00 | 10,50 | 9,52 | 6,35 |
GOP-31204500625 | 114,30 | 130,20 | 17,50 | 15,87 | 7,93 |
GOP-37504500625 | 114,30 | 133,35 | 17,50 | 15,87 | 9,52 |
GOP-50004500750 | 114,30 | 139,70 | 21,00 | 19,05 | 12,70 |
GOP-25004625375 | 117,48 | 130,17 | 10,50 | 9,52 | 6,35 |
GOP-25004625562 | 117,48 | 130,17 | 15,75 | 14,29 | 6,35 |
GOP-31204625625 | 117,48 | 133,35 | 17,50 | 15,87 | 7,93 |
GOP-37504625625 | 117,50 | 136,50 | 17,50 | 15,87 | 9,52 |
GOP-31204750625 | 120,60 | 136,50 | 17,50 | 15,87 | 7,93 |
GOP-18704750375 | 120,65 | 130,17 | 10,50 | 9,52 | 4,75 |
GOP-25004750562 | 120,65 | 133,35 | 15,75 | 14,29 | 6,35 |
GOP-25004750375 | 120,65 | 133,35 | 10,50 | 9,52 | 6,35 |
GOP-37504750625 | 120,65 | 139,70 | 17,50 | 15,87 | 9,52 |
GOP-50004750750 | 120,65 | 146,05 | 21,00 | 19,05 | 12,70 |
GOP-25004875375 | 123,80 | 136,50 | 10,50 | 9,52 | 6,35 |
GOP-37504875625 | 123,80 | 142,80 | 17,50 | 15,87 | 9,52 |
GOP-18704875375 | 123,82 | 133,35 | 10,50 | 9,52 | 4,75 |
GOP-18705000375 | 127,00 | 136,50 | 10,50 | 9,52 | 4,75 |
GOP-25005000562 | 127,00 | 139,70 | 15,75 | 14,29 | 6,35 |
GOP-25005000375 | 127,00 | 139,70 | 10,50 | 9,52 | 6,35 |
GOP-31205000625 | 127,00 | 142,88 | 17,50 | 15,87 | 7,93 |
GOP-37505000375 | 127,00 | 146,05 | 10,50 | 9,52 | 9,52 |
GOP-37505000625 | 127,00 | 146,05 | 17,50 | 15,87 | 9,52 |
GOP-50005000750 | 127,00 | 152,40 | 21,00 | 19,05 | 12,70 |
GOP-31205125625 | 130,17 | 146,03 | 17,50 | 15,87 | 7,93 |
GOP-25005125375 | 130,18 | 142,88 | 10,50 | 9,52 | 6,35 |
GOP-37505125625 | 130,18 | 149,22 | 17,50 | 15,87 | 9,52 |
GOP-25005250375 | 133,30 | 146,00 | 10,50 | 9,52 | 6,35 |
GOP-25005250562 | 133,35 | 146,05 | 15,75 | 14,29 | 6,35 |
GOP-31205250625 | 133,35 | 149,22 | 17,50 | 15,87 | 7,93 |
GOP-37505250625 | 133,35 | 152,40 | 17,50 | 15,87 | 9,52 |
GOP-37505375625 | 136,52 | 155,57 | 17,50 | 15,87 | 9,52 |
GOP-25005500562 | 139,70 | 152,40 | 15,75 | 14,29 | 6,35 |
GOP-25005500375 | 139,70 | 152,40 | 10,50 | 9,52 | 6,35 |
GOP-31205500625 | 139,70 | 155,56 | 17,50 | 15,87 | 7,93 |
GOP-37505500625 | 139,70 | 158,75 | 17,50 | 15,87 | 9,52 |
GOP-50005500750 | 139,70 | 165,10 | 21,00 | 19,05 | 12,70 |
GOP-31205625625 | 142,87 | 158,73 | 17,50 | 15,87 | 7,93 |
GOP-37505625625 | 142,88 | 161,92 | 17,50 | 15,87 | 9,52 |
GOP-25005750562 | 146,00 | 158,75 | 15,75 | 14,29 | 6,35 |
GOP-31205750625 | 146,00 | 161,88 | 17,50 | 15,87 | 7,93 |
GOP-37505750625 | 146,05 | 165,10 | 17,50 | 15,87 | 9,52 |
GOP-37505875625 | 149,20 | 168,20 | 17,50 | 15,87 | 9,52 |
GOP-25006000562 | 152,40 | 165,10 | 15,75 | 14,29 | 6,35 |
GOP-25006000375 | 152,40 | 165,10 | 10,50 | 9,52 | 6,35 |
GOP-31206000625 | 152,40 | 168,26 | 17,50 | 15,87 | 7,93 |
GOP-37506000375 | 152,40 | 171,45 | 10,50 | 9,52 | 9,52 |
GOP-37506000625 | 152,40 | 171,45 | 17,50 | 15,87 | 9,52 |
GOP-50006000750 | 152,40 | 177,80 | 21,00 | 19,05 | 12,70 |
GOP-25006250375 | 158,75 | 171,45 | 10,50 | 9,52 | 6,35 |
GOP-37506250375 | 158,75 | 177,80 | 10,50 | 9,52 | 9,52 |
GOP-37506250625 | 158,75 | 177,80 | 17,50 | 15,87 | 9,52 |
GOP-25006500562 | 165,10 | 177,80 | 15,75 | 14,29 | 6,35 |
GOP-25006500375 | 165,10 | 177,80 | 10,50 | 9,52 | 6,35 |
GOP-37506500625 | 165,10 | 184,15 | 17,50 | 15,87 | 9,52 |
GOP-50006500750 | 165,10 | 190,50 | 21,00 | 19,05 | 12,70 |
GOP-25006750562 | 171,45 | 184,15 | 15,75 | 14,29 | 6,35 |
GOP-37506750625 | 171,45 | 190,50 | 17,50 | 15,87 | 9,52 |
GOP-25007000375 | 177,80 | 190,50 | 10,50 | 9,52 | 6,35 |
GOP-25007000562 | 177,80 | 190,50 | 15,75 | 14,29 | 6,35 |
GOP-31207000625 | 177,80 | 193,60 | 17,50 | 15,87 | 7,93 |
GOP-37507000625 | 177,80 | 196,85 | 17,50 | 15,87 | 9,52 |
GOP-50007000500 | 177,80 | 203,20 | 14,00 | 12,70 | 12,70 |
GOP-50007000625 | 177,80 | 203,20 | 17,50 | 15,87 | 12,70 |
GOP-50007000750 | 177,80 | 203,20 | 21,00 | 19,05 | 12,70 |
GOP-25007250562 | 184,15 | 196,85 | 15,75 | 14,29 | 6,35 |
GOP-37507250625 | 184,15 | 203,20 | 17,50 | 15,87 | 9,52 |
GOP-25007500375 | 190,50 | 203,20 | 10,50 | 9,52 | 6,35 |
GOP-25007500562 | 190,50 | 203,20 | 15,75 | 14,29 | 6,35 |
GOP-37507500625 | 190,50 | 209,55 | 17,50 | 15,87 | 9,52 |
GOP-37507750625 | 196,85 | 215,90 | 17,50 | 15,87 | 9,52 |
GOP-50007750750 | 196,85 | 222,25 | 21,00 | 19,05 | 12,70 |
GOP-25008000562 | 203,20 | 215,90 | 15,70 | 14,27 | 6,35 |
GOP-37508000625 | 203,20 | 222,25 | 17,50 | 15,87 | 9,52 |
GOP-37508250625 | 209,55 | 228,60 | 17,50 | 15,87 | 9,52 |
GOP-25008500562 | 215,90 | 228,60 | 15,75 | 14,29 | 6,35 |
GOP-37508500625 | 215,90 | 234,95 | 17,50 | 15,87 | 9,52 |
GOP-37508750625 | 222,25 | 241,29 | 17,50 | 15,87 | 9,52 |
GOP-37509000625 | 228,60 | 247,65 | 17,50 | 15,87 | 9,52 |
GOP-37509250625 | 234,95 | 254,00 | 17,50 | 15,87 | 9,52 |
GOP-37509500625 | 241,30 | 260,35 | 17,50 | 15,87 | 9,52 |
GOP-37509750625 | 247,65 | 266,70 | 17,50 | 15,87 | 9,52 |
GOP-31201625500 | 41,28 | 57,15 | 14,00 | 12,70 | 7,93 |
GOP-37501625625 | 41,28 | 60,32 | 17,50 | 15,87 | 9,52 |
GOP-31201687500 | 42,80 | 58,70 | 14,00 | 12,70 | 7,93 |
GOP-18701687187 | 42,86 | 52,38 | 5,25 | 4,75 | 4,75 |
GOP-12501750125 | 44,40 | 50,80 | 3,50 | 3,17 | 3,17 |
GOP-12501750250 | 44,40 | 50,80 | 7,00 | 6,35 | 3,17 |
GOP-18701750187 | 44,45 | 53,98 | 5,25 | 4,75 | 4,75 |
GOP-18701750375 | 44,45 | 53,98 | 10,50 | 9,52 | 4,75 |
GOP-25001750250 | 44,45 | 57,15 | 7,00 | 6,35 | 6,35 |
GOP-25001750375 | 44,45 | 57,15 | 10,50 | 9,52 | 6,35 |
GOP-31201750312 | 44,45 | 60,32 | 8,75 | 7,93 | 7,93 |
GOP-31201750500 | 44,45 | 60,32 | 14,00 | 12,70 | 7,93 |
GOP-37501750625 | 44,45 | 63,50 | 17,50 | 15,87 | 9,52 |
GOP-18701812187 | 46,00 | 55,50 | 5,25 | 4,75 | 4,75 |
GOP-18701812375 | 46,00 | 55,50 | 10,50 | 9,52 | 4,75 |
GOP-18701875187 | 47,62 | 57,15 | 5,25 | 4,75 | 4,75 |
GOP-18701875375 | 47,62 | 57,15 | 10,50 | 9,52 | 4,75 |
GOP-25001875250 | 47,62 | 60,32 | 7,00 | 6,35 | 6,35 |
GOP-25001875375 | 47,62 | 60,32 | 10,50 | 9,52 | 6,35 |
GOP-31201875500 | 47,62 | 63,50 | 14,00 | 12,70 | 7,93 |
GOP-18701937187 | 49,20 | 58,70 | 5,25 | 4,75 | 4,75 |
GOP-18701937375 | 49,20 | 58,70 | 10,50 | 9,52 | 4,75 |
GOP-25001937375 | 49,21 | 61,91 | 10,50 | 9,52 | 6,35 |
GOP-12502000250 | 50,80 | 57,15 | 7,00 | 6,35 | 3,17 |
GOP-18702000187 | 50,80 | 60,32 | 5,25 | 4,75 | 4,75 |
GOP-18702000312 | 50,80 | 60,32 | 8,75 | 7,93 | 4,75 |
GOP-18702000375 | 50,80 | 60,32 | 10,50 | 9,52 | 4,75 |
GOP-25002000250 | 50,80 | 63,50 | 7,00 | 6,35 | 6,35 |
GOP-25002000375 | 50,80 | 63,50 | 10,50 | 9,52 | 6,35 |
GOP-31202000312 | 50,80 | 66,68 | 8,75 | 7,93 | 7,93 |
GOP-31202000500 | 50,80 | 66,68 | 14,00 | 12,70 | 7,93 |
GOP-37502000625 | 50,80 | 69,85 | 17,50 | 15,87 | 9,52 |
GOP-50002000750 | 50,80 | 76,20 | 21,00 | 19,05 | 12,70 |
GOP-18702125250 | 53,98 | 63,50 | 7,00 | 6,35 | 4,75 |
GOP-18702125375 | 53,98 | 63,50 | 10,50 | 9,52 | 4,75 |
GOP-25002125375 | 53,98 | 66,68 | 10,50 | 9,52 | 6,35 |
GOP-31202125312 | 53,98 | 69,85 | 8,75 | 7,93 | 7,93 |
GOP-31202125500 | 53,98 | 69,85 | 14,00 | 12,70 | 7,93 |
GOP-18702187312 | 55,50 | 65,00 | 8,75 | 7,93 | 4,75 |
GOP-18702250375 | 57,15 | 66,68 | 10,50 | 9,52 | 4,75 |
GOP-25002250375 | 57,15 | 69,85 | 10,50 | 9,52 | 6,35 |
GOP-31202250500 | 57,15 | 73,02 | 14,00 | 12,70 | 7,93 |
GOP-37502250375 | 57,15 | 76,20 | 10,50 | 9,52 | 9,52 |
GOP-37502250625 | 57,15 | 76,20 | 17,50 | 15,87 | 9,52 |
GOP-31202312312 | 58,73 | 74,59 | 8,75 | 7,93 | 7,93 |
GOP-18702375187 | 60,32 | 69,85 | 5,25 | 4,75 | 4,75 |
GOP-18702375375 | 60,32 | 69,85 | 10,50 | 9,52 | 4,75 |
GOP-25002375375 | 60,32 | 73,02 | 10,50 | 9,52 | 6,35 |
GOP-31202375500 | 60,32 | 76,20 | 14,00 | 12,70 | 7,93 |
GOP-37502375375 | 60,32 | 79,38 | 10,50 | 9,52 | 9,52 |
GOP-37502375625 | 60,32 | 79,38 | 17,50 | 15,87 | 9,52 |
GOP-18702500375 | 63,50 | 73,02 | 10,50 | 9,52 | 4,75 |
GOP-25002500250 | 63,50 | 76,20 | 7,00 | 6,35 | 6,35 |
GOP-25002500375 | 63,50 | 76,20 | 10,50 | 9,52 | 6,35 |
GOP-31202500312 | 63,50 | 79,38 | 8,75 | 7,93 | 7,93 |
GOP-31202500500 | 63,50 | 79,38 | 14,00 | 12,70 | 7,93 |
GOP-37502500375 | 63,50 | 82,55 | 10,50 | 9,52 | 9,52 |
GOP-37502500625 | 63,50 | 82,55 | 17,50 | 15,87 | 9,52 |
GOP-50002500750 | 63,50 | 88,90 | 21,00 | 19,05 | 12,70 |
GOP-31202562312 | 65,00 | 80,95 | 8,75 | 7,93 | 7,93 |
GOP-31202625500 | 66,60 | 82,50 | 14,00 | 12,70 | 7,93 |
GOP-18702625375 | 66,68 | 76,20 | 10,50 | 9,52 | 4,75 |
GOP-25002625250 | 66,68 | 79,38 | 7,00 | 6,35 | 6,35 |
GOP-25002625375 | 66,68 | 79,38 | 10,50 | 9,52 | 6,35 |
GOP-37502625375 | 66,68 | 85,72 | 10,50 | 9,52 | 9,52 |
GOP-37502625625 | 66,68 | 85,72 | 17,50 | 15,87 | 9,52 |
GOP-31202750312 | 69,80 | 85,70 | 8,75 | 7,93 | 7,93 |
GOP-31202750500 | 69,80 | 85,70 | 14,00 | 12,70 | 7,93 |
GOP-18702750187 | 69,85 | 79,38 | 5,25 | 4,75 | 4,75 |
GOP-18702750375 | 69,85 | 79,38 | 10,50 | 9,52 | 4,75 |
GOP-25002750375 | 69,85 | 82,55 | 10,50 | 9,52 | 6,35 |
GOP-37502750375 | 69,85 | 88,90 | 10,50 | 9,52 | 9,52 |
GOP-37502750500 | 69,85 | 88,90 | 14,00 | 12,70 | 9,52 |
GOP-37502750625 | 69,85 | 88,90 | 17,50 | 15,87 | 9,52 |
GOP-18702875375 | 73,00 | 82,50 | 10,50 | 9,52 | 4,75 |
GOP-37502875375 | 73,00 | 92,10 | 10,50 | 9,52 | 9,52 |
GOP-37502875625 | 73,00 | 92,10 | 17,50 | 15,87 | 9,52 |
GOP-25002875375 | 73,02 | 85,72 | 10,50 | 9,52 | 6,35 |
GOP-31202875500 | 73,03 | 88,90 | 14,00 | 12,70 | 7,93 |
GOP-18703000375 | 76,20 | 85,72 | 10,50 | 9,52 | 4,75 |
GOP-25003000250 | 76,20 | 88,90 | 7,00 | 6,35 | 6,35 |
GOP-25003000375 | 76,20 | 88,90 | 10,50 | 9,52 | 6,35 |
GOP-31203000312 | 76,20 | 92,08 | 8,75 | 7,93 | 7,93 |
GOP-31203000500 | 76,20 | 92,08 | 14,00 | 12,70 | 7,93 |
GOP-37503000625 | 76,20 | 95,25 | 17,50 | 15,87 | 9,52 |
GOP-50003000500 | 76,20 | 101,60 | 14,00 | 12,70 | 12,70 |
GOP-50003000750 | 76,20 | 101,60 | 21,00 | 19,05 | 12,70 |
GOP-31203125312 | 79,37 | 95,21 | 8,75 | 7,93 | 7,93 |
GOP-31203125500 | 79,37 | 95,21 | 14,00 | 12,70 | 7,93 |
GOP-18703125375 | 79,38 | 88,90 | 10,50 | 9,52 | 4,75 |
GOP-25003125250 | 79,38 | 92,08 | 7,00 | 6,35 | 6,35 |
GOP-25003125375 | 79,38 | 92,08 | 10,50 | 9,52 | 6,35 |
GOP-37503125625 | 79,38 | 98,42 | 17,50 | 15,87 | 9,52 |
GOP-31203250312 | 82,50 | 98,40 | 8,75 | 7,93 | 7,93 |
GOP-31203250500 | 82,50 | 98,40 | 14,00 | 12,70 | 7,93 |
GOP-18703250375 | 82,55 | 92,08 | 10,50 | 9,52 | 4,75 |
GOP-25003250250 | 82,55 | 95,25 | 7,00 | 6,35 | 6,35 |
GOP-25003250375 | 82,55 | 95,25 | 10,50 | 9,52 | 6,35 |
GOP-37503250375 | 82,55 | 101,60 | 10,50 | 9,52 | 9,52 |
GOP-37503250625 | 82,55 | 101,60 | 17,50 | 15,87 | 9,52 |
GOP-25003375375 | 85,72 | 98,42 | 10,50 | 9,52 | 6,35 |
GOP-31203375500 | 85,72 | 101,60 | 14,00 | 12,70 | 7,93 |
GOP-37503375625 | 85,72 | 104,78 | 17,50 | 15,87 | 9,52 |
GOP-18703375375 | 85,73 | 95,25 | 10,50 | 9,52 | 4,75 |
GOP-18703500375 | 88,90 | 98,42 | 10,50 | 9,52 | 4,75 |
GOP-25003500375 | 88,90 | 101,60 | 10,50 | 9,52 | 6,35 |
GOP-31203500500 | 88,90 | 104,78 | 14,00 | 12,70 | 7,93 |
GOP-37503500375 | 88,90 | 107,95 | 10,50 | 9,52 | 9,52 |
GOP-37503500625 | 88,90 | 107,95 | 17,50 | 15,87 | 9,52 |
GOP-50003500750 | 88,90 | 114,30 | 21,00 | 19,05 | 12,70 |
GOP-18703625375 | 92,08 | 101,60 | 10,50 | 9,52 | 4,75 |
GOP-25003625375 | 92,08 | 104,78 | 10,50 | 9,52 | 6,35 |
GOP-31203625312 | 92,08 | 107,95 | 8,75 | 7,93 | 7,93 |
GOP-31203625500 | 92,08 | 107,95 | 14,00 | 12,70 | 7,93 |
GOP-37503625625 | 92,08 | 111,12 | 17,50 | 15,87 | 9,52 |
GOP-31203750500 | 95,20 | 111,10 | 14,00 | 12,70 | 7,93 |
GOP-18703750375 | 95,25 | 104,78 | 10,50 | 9,52 | 4,75 |
GOP-25003750375 | 95,25 | 107,95 | 10,50 | 9,52 | 6,35 |
GOP-37503750375 | 95,25 | 114,30 | 10,50 | 9,52 | 9,52 |
GOP-37503750625 | 95,25 | 114,30 | 17,50 | 15,87 | 9,52 |
GOP-31203875312 | 98,40 | 114,30 | 8,75 | 7,93 | 7,93 |
GOP-31203875562 | 98,40 | 114,30 | 15,75 | 14,29 | 7,93 |
GOP-18703875375 | 98,42 | 107,95 | 10,50 | 9,52 | 4,75 |
GOP-25003875375 | 98,42 | 111,12 | 10,50 | 9,52 | 6,35 |
GOP-37503875625 | 98,42 | 117,47 | 17,50 | 15,87 | 9,52 |
